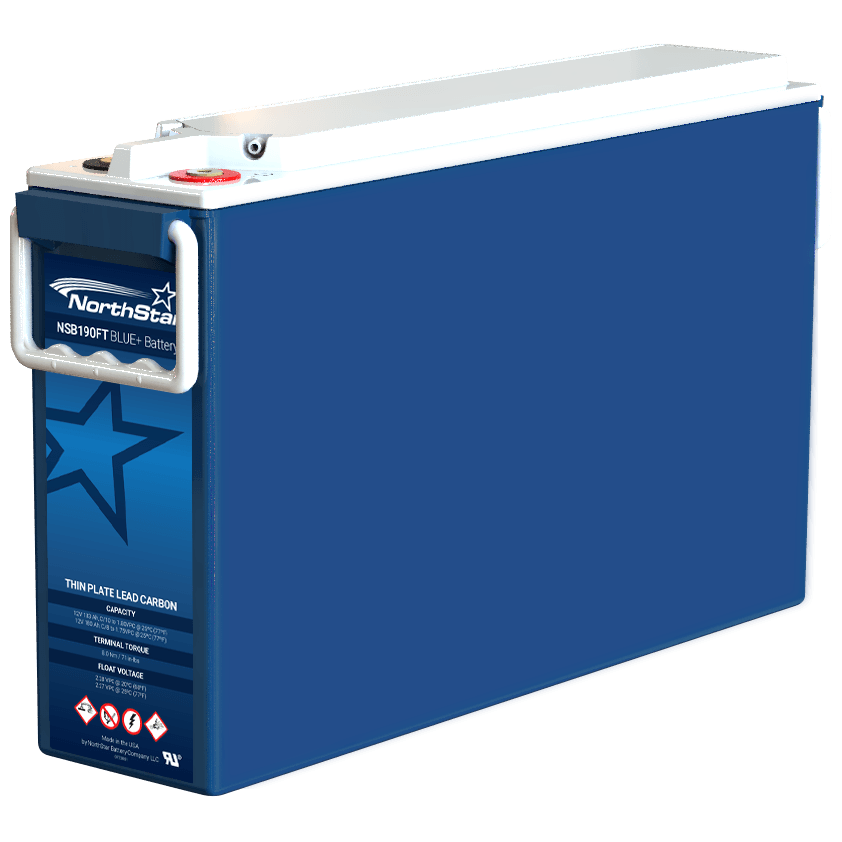

NorthStar BLUE+ NSB 190FT
NorthStar BLUE+ Thin Plate Lead Carbon
In many regions of the world the on-grid power supply is unreliable, suffering frequent power outages every day. This means frequent recharging, severely shortening battery life. To minimize the impact of outages or use of diesel generators it is crucial to recharge batteries as quickly as possible - you never know when the next outage will be. At the same time, the cyclability of the battery needs to be exceptional, as the number of charging cycles will be greatly increased when the grid goes down.
NorthStar AGM thin plate lead carbon technology delivers ultra fast recharge times and more than three times as many cycles as standard AGMs, thanks to its PSOC compatibility. This not only ensures a more reliable power supply, but also reduces the cost of operation.
NorthStar Battery has pushed the limits of battery design with the innovative NSB 210FT BLUE+ Battery® that delivers 10% more backup power in the same footprint as a 190FT. The NSB 210FT BLUE+ Battery® uses a unique 23” case and handle design that frees up space for more of NorthStar’s proven AGM thin plate technology, setting a new standard for high energy density 12V telecom batteries.
- Exceptional PSoC cyclic performance 2050 cycles @50% DoD
- Design life 12+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Ultra fast recharge
- Shelf life of up to 24 months
- Lead carbon added to negative electrodes increases power and reduces sulfation
- High potential fuel savings when used with hybrid genset applications
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
Details
Terminal Configuration: | Front Terminal |
Terminal Type: | M6 M |
Volts: | 12V |
Battery Capacity: | 190Ah |
Capacity Rate: | 10 hr rate to 1.80 volts/cell @ 77°F (25°C) |
Length: | 56 CM |
Width: | 12.5 CM |
Height: | 32 CM |
Weight: | 62 KG |
Construction
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Flame retardant (UL 94 VO) and LOI of at least 28%
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Non-halogenated thermally sealed plastic casing
Applications
- Wireless and fixed line communications
- Cable TV
- Emergency lighting
- Power generation
- Offshore applications
Standards
- EUROBAT design life definition: Very Long Life (12+ years)
- Compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
