Power Products 12V Battery Conditioner / Charger

SKU: AC25C

12V Battery Conditioner / Charger

Industry:

Aviation

Need:

Sector:

Military Aviation, Tactical Vehicle

My Wishlist Compare

Back to: AC Battery Chargers

Description

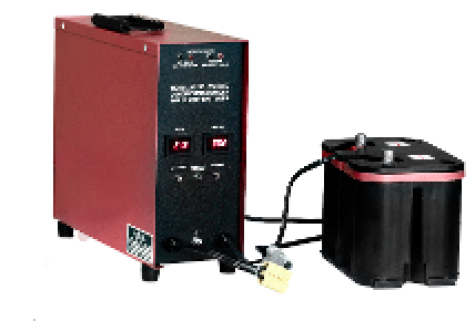

The C25C Conditioner / Charger is used in authorized military facilities and as described in the NAVAIR 17-15 BAD-1 Technical Manual, Appendix N. The unit is equipped with a battery temperature sensing plate which sits on top of the optima battery. The C25C de-sulfates and recovers sulfated batteries by connecting available voltage to a maximum of 21 Volts pulsed, to the terminals of the battery. The resulting pulsed current breaks-down the sulfate coatings on the battery plates. When sufficient breakdown is achieved, the C25C reverts to a smooth DC constant potential charge limited to approximately 14.8 Volts and 28 Amps maximum. The battery may be removed from the conditioner for charging from other sources, or can be left on the conditioner for the completion of charge.

Features

Isolated charge - one or two batteries. Charges all 12 and 24 volt Lead Acid batteries and 1-22 cell NiCads.
Current adjustable from 0 to 25 amps
True constant current (Cl) for NiCad batteries or constant potential (CP) for Lead Acid batteries
Digital ammeter and voltmeter read charge current and voltage for either battery
Selectable charge time from 1 to 999 minutes with digital elapsed time
DC output cables : 3 sets Elcon, aligator clips, rings

Three position selector : 12V Lead (CP), 24V Lead (CP) or NiCad (CI)
Current adjust - 5 turn : 0 to 25 amperes
Settable digital charge timer, 1 to 999 minutes
Digital voltmeter and ammeter
Constant Potential for 12 and 24V Sealed Lead Acid batteries. 35V max for NiCad.
AC line selector - on rear : 115 or 230V

Details

Input Voltage:	115 or 230 VAC
Input Current:	12 A @ 115V, 6 A @ 230V
Input Frequency:	50 - 60 Hz
Constant Output Voltage:	12 VDC or 24 VDC
Output Current:	25 A
