12V U1-40
SKU: 12V_U1-40

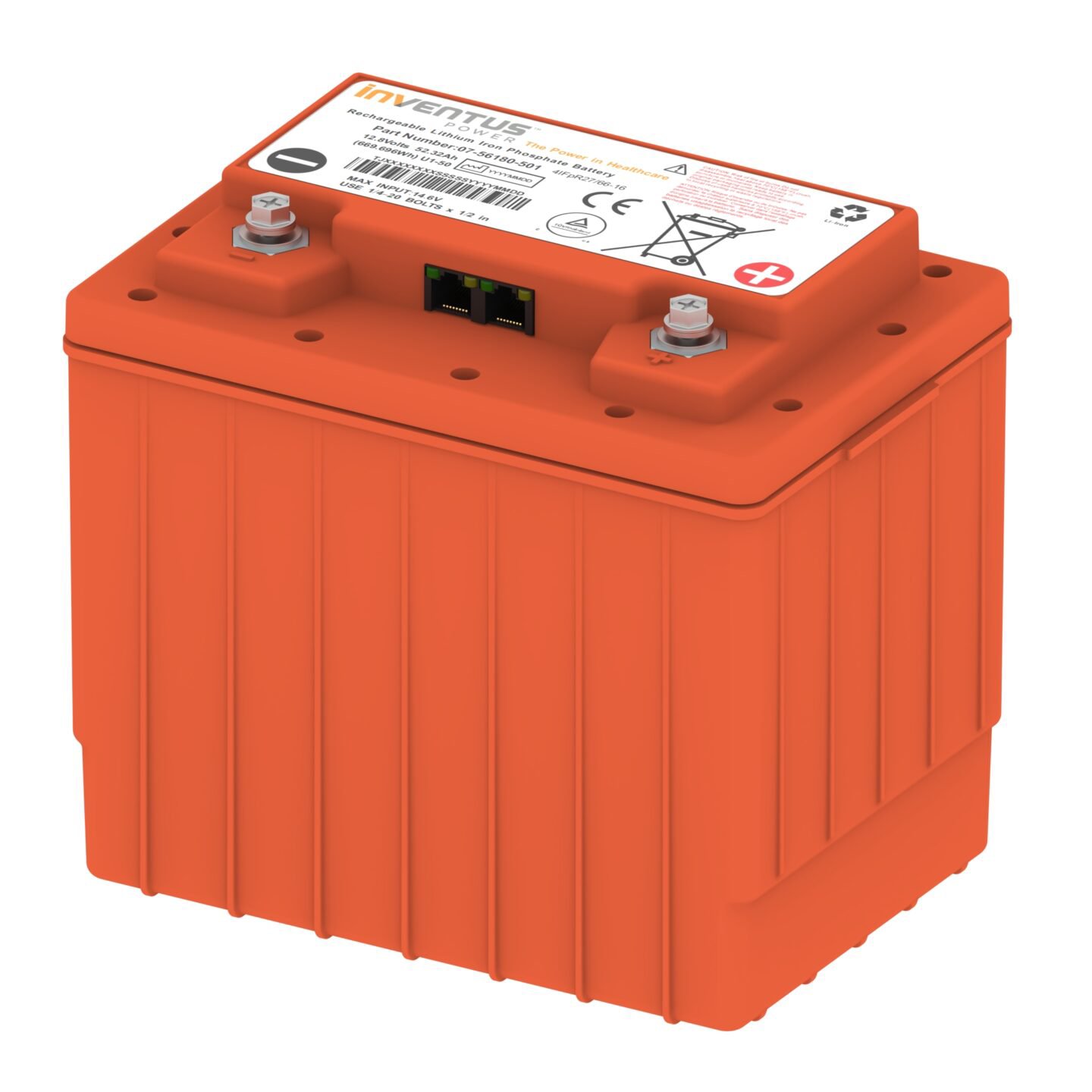

U1-40 U1LiFe® 12V, 38.4Ah Li-ion Battery Pack
Sector:
Medical, Material Handling
Industry:
Medical
Description
U1LiFe Series Batteries
Long-Life Lithium Iron Phosphate batteries designed for mobile carts
Most trusted by medical cart OEs
- Last 10x longer than lead acid batteries
- Maintenance free
- Compatible with Tripplite and PowerVar inverters
Features
- Certified to global safety standards
- Fast charging within 3 hours
- Long shelf life performance with shutdown mode
- Automotive grade cells from top tier manufacturers
- Plug & play lead acid replacement
- UL2054 Shock & Vibration + Thermal Propagation Mitigation
- Compatible with many off-the-shelf chargers
- Increased life cycles up to 10X over sealed lead acid
Details
| Terminal Type: | M6 Female |
| Volts: | 12 VDC |
| Battery Capacity: | 38.4 Ah |
| Length: | 20.97 CM |
| Width: | 13.72 CM |
| Height: | 18.5 CM |
| Weight: | 5.87 KG |
Construction
- BCI Size U1
- Terminal Type (ISO) M6
- Terminal Torque (Nm) 3.1 ± 0.3 Nm
- Weight 5.87kg (12.94lbs)
- Installation Orientation Horizontal / Vertical
- Ingress Protection Rating IP51
- Case Flammability Rating Flame Retardant UL94 V-0
Applications
- Medical Carts
- E-Mobility
- Industrial Carts
Standards
- UL/CSA62133-2
- UL2054
- IEC62133-2
- RoHS
- EMC
- UN/DOT 38.3
