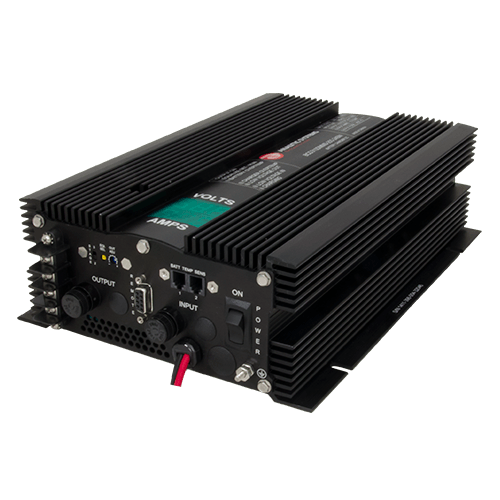

Analytic Systems BCD310-110-48

SKU: BCD310-110-48

5A, 48V Out, 100-140V In, Iso DC/DC Battery Charger, 3 Bank

Industry:

Industrial

Sector:

Material Handling, Switchgear

Need:

My Wishlist Compare

Back to: DC Battery Chargers

Description

The traditional BCD310 series chargers feature 300 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC.

All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Features

300 watts of charging power
Two or three bank charging
Temperature compensation
Manual equalization mode
1, 2 or 3 bank charging

Low EMI
Adjustable float voltage
Three year parts and labour warranty
Typical Service Life : > 10 years (87,600 hrs)

Details

Input Voltage:	100 - 140 VDC
Input Current:	3.8 A
Efficiency:	> 75 % at Full Load
Constant Output Voltage:	48 VDC
Output Current:	5 A

Duty Cycle:	Continuous
Stages:	2 or 3 stage user selectable
Humidity:	0 - 95% Relative Humidity (non-condensing) with standard conformal coating
Phase:	Single Phase
Isolation Input-Case:	> 1500 VDC
Isolation Input-Output:	> 1500 VDC
Isolation Output-Case:	> 1500 VDC
Input Fuse:	MDA-5
Output Fuse:	AGC 10
Length:	24.4 CM
Width:	20.8 CM
Height:	8.9 CM
Weight:	3.4 KG
